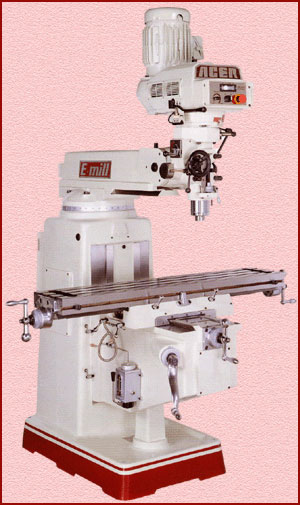

3VK ACER, 50"X10",Long. trav. 34",Cr trav 16",3Hp,60-4500rpm,(Oth sizes available)   Our stock number: 430001

3VK ACER, 50 X10 ,Long. trav. 34 ,Cr trav 16 ,3Hp,60-4500rpm,(Oth sizes available)

ACER
Model: E - Mill 3VK
Working Surface: 50"x10"
Longitudinal travel: 34”
Cross travel: 16"
Vertical knee travel: 16"
Ram travel: 20"
T-slot number, size:3, 5/8"
Main motor:3 Hp
Head moves right to left:90°
Head mover front to back: 45°
Spindle drive:Variable
Spindle speed:60-4,500 rpm
Spindle taper: R-8
Power quill feed (In/Rev):0.0015",0.003",0.006"
Quill diameter (Chromed): 3 3/8”
Quill travel:5"
Weight (approximate): 3,050lbs
See more info. about the complete line of ACER equip.
at www.nevinsmachineryconcepts.com
