No. STC- 20/08, SUPERTEC, Wrk dia. 1.05"-2",Whl size20"x8"x12",1070rpm,(Other sizes avail)   Our stock number: 440002

No. STC- 20/08, SUPERTEC, Wrk dia. 1.05 -2 ,Whl size20 x8 x12 ,1070rpm,(Other sizes avail)

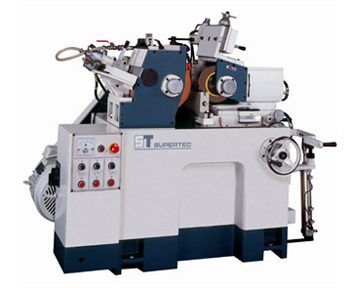

SUPERTEC MODEL: STC-20/08
Work diameter (with standard workrest): 0.04”~2”
Work diameter (with special workrest): 2”~4"
GRINDING WHEEL
Wheel size (Diameter x Width x Bore): 20”x 8”x 12”
Spindle speed: 1070 rpm
Dressing increment (per graduation): 0.0005”
Dressing increment (per revolution): 0.0625”
REGULATING WHEEL
Wheel size (dia x width x bore): 12”x 8”x 5”
Spindle speeds (10 steps): 15~308 rpm
Handwheel per graduation: 0.002”
Handwheel per revolution: 0.2”
Swivelling angle: ±5°
Inclining angle: ±5°
Dressing increment per graduation: 0.0005”
Dressing increment per revolution: 0.0625”
Rapid feeding of saddle handwheel
per graduation: 0.002”
per revolution: 0.25”
Micro feeding of saddle handwheel
per graduation: 0.000050”
per revolution: 0.00625”
Grinding wheel motor: 20 HP
Hydraulic motor: 2 HP
