1/8"x20",KALAMAZOO,V2012F,Bl. length 159"-162",50-5200fpm,3Hp,trav.13",other sizes avail.)   Our stock number: 410009

1/8 x20 ,KALAMAZOO,V2012F,Bl. length 159 -162 ,50-5200fpm,3Hp,trav.13 ,other sizes avail.)

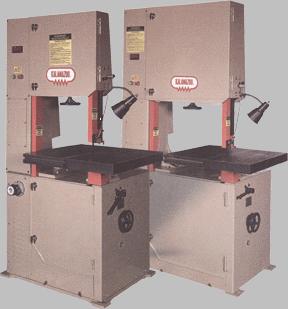

Kalamazoo V2012 F Vertical Band Saw
Throat: 20” (508mm)
Work Height: 12.75” (325mm)
Drive Motor: 3HP
Blade Length: 159”-162”(4040-4115mm)
Blade Width: 1/8”-1” (3-25mm)
Blade Speed (fpm): 50-5200
230/460/60/3 Electrics
Magnetic Starter with 110V Control Circuit and Overload Protection
Three (3) H. P. TEFC Motor
Dual Range Transmission
½” and ¾” Carbide-Faced Chevron type Blade guides with backup roller
26-3/4” x 29 Heavy Duty Cast Iron Table w/ two-way tilt (1 5°L & 45°R)
Four (4) T-Slots on Top (Hydraulic table only) Table Trav. 13”
Bonded Rubber Band Wheels
110V Work Light
Built-in Air Chip Blower
Blade Tension Indicator
Blade Speed Indicator
3/4" Carbon Hardback Blade
Locking Band Wheel Doors
Operation and Parts Manual
Dimensions:
Length: 51” (1295mm)
Width: 41” (1040mm)
Height: 81” (2057mm)
Net Weight: 1,390 lbs (630kg)
Shipping Weight: 1540 (698kg)
See more information about the complete line of Kalamazoo
equipment at www.nevinsmachineryconcepts.com
