6" x 18",CLAUSING CSG 618H,Tbl 6"x18",2Hp,Gr whl dia. 8",other sizes avail)   Our stock number: 410011

6 x 18 ,CLAUSING CSG 618H,Tbl 6 x18 ,2Hp,Gr whl dia. 8 ,other sizes avail)

MODELCSG-618
Table Size: 152 x 460mm (6" x 18")
Max. grinding length Longitudinal: 480mm (19")
Max. grinding width Crosswise:178mm (7")
Max. Dist.from table surface to spindle centerline: 460mm (18")
Standard magnetic chuck size: 150 x 450mm (6" x 18")
Longitudinal movement of tableMax. travel, manual: 510mm (20")
Cross transverse travelMax. manual transverse travel:195mm (7 3/4")
Handwheel per revolution:5mm (0.2")
Handwheel per graduation:0.02mm (0.0005")
Wheelhead vertical infeed
Handwheel per revolution:1mm (0.04")
Handwheel per graduation:0.005mm (0.0001")
Grinding spindle drive Speed;60Hz: 3450 RPM; 50Hz: 2850 RPM
Power rating:2 HP
Standard grinding wheelDiameter:203mm (8")
Width:12mm (1/2"), Max: 19mm (3/4")
Bore:31.75mm (1 1/4")
Floor space:1810 x 1133 x 1660mm (71" x 45" x 65")
Net weight Approx.:720 kgs (1584 lbs)
Gross weight Approx.:850 kgs (1870 lbs)
Rated power, Approx.:2 HP
Packing dimensions L x W x H:1060 x 920 x 1850mm (42" x 36" x 73")

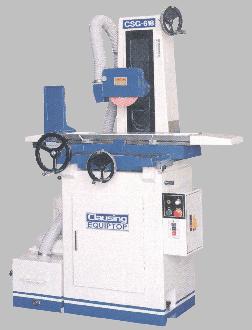

pictured dust collector is not included
See out complete line of Clausing equipment at
www.nevinsmachineryconcepts.com
