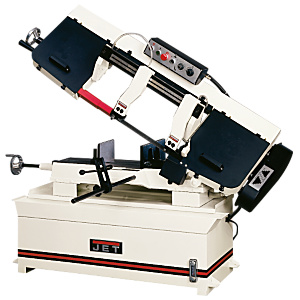

10" x 18", JET HBS1018W, Cap. 10" rnd at 90° & 45°,Sp FPM 82, 132, 210, 330   Our stock number: 480001

10 x 18 , JET HBS1018W, Cap. 10 rnd at 90° & 45°,Sp FPM 82, 132, 210, 330

Make: JET
Model Number: HBS-1018W
Part Number: 414473
Motor: 2HP, 230V only, 1Ph
Round at 90 Degrees: 10"
Round at 45 Degrees: 10"
Rectangle at 90 Degrees: 10" x 15"
Blade Size (in.): 1 x .035 x 130-1/2
Blade Speeds (SFPM): 82, 132, 210, 330
Bed Height: 25"
Blade Length: 130-1/2"
Rectangle at 45 (in.): 10 x 7-1/4
Overall Dimensions: 70" x 31" x 44"
Height: 43"
Width: 22"
Length: 68"
Net Weight 801 pound
Details:
10" HORIZONTAL BANDSAW
Large handwheel and built-in gauge for easy blade tensioning
Coolant is distributed through the blade guides
Blade guides feature parallel double-row ball bearing support
Blade brush is built-in and self-propelled
Quick-positioning vise with fully adjustable jaws swivels to 45?
Removable chip tray for quick clean-up
Blade is fully guarded regardless of blade guide position
Fully adjustable hydraulic downfeed with separate on/off valve
Automatic shut-off after cut
Carbide blade guides with rollers
Coolant system
4/6VT Bi-metal blade
Adjustable material stop
