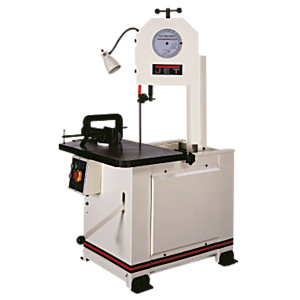

1/4" x 120", JET, VSF-14-1, Max Cap. ht. 14.5",1HP,Self Feeding,Th 8.5",(other Jet avail)   Our stock number: 480002

1/4 x 120 , JET, VSF-14-1, Max Cap. ht. 14.5 ,1HP,Self Feeding,Th 8.5 ,(other Jet avail)

MAKE: JET
MODEL: VSF-14-1
Motor: 1HP, 115/230V, 1Ph, Pre -wired 115V
Cutting Capacity Height: 14-1/2”
Blade Size: 120”
Blade Speeds (SFPM):70, 140, 280, 580
Throat Depth (in.) 8-1/2”
Blade Length (in.) 120”
Blade Width (Min-Max/ in.): 1/4 - 1
Table Size (in.):30-1/2 x 18-1/2
Table Height at 90°: 30”
Overall Dimensions:40" x 30-1/2" x 69"
Height: 72”
Width: 32.5”
Length: 45”
Net Weight: 641 lb
Designed for multiple uses cutting both ferrous and nonferrous metals
Welded frame and base of heavy gauge steel
Swivel vise for mitering
Heavy-duty cast iron table
Hydraulic feed control
Guide rollers accept blade sizes: 1/4", 3/8", 1/2", 5/8", 3/4", 1"
Four foot pads
Work lamp
Chip tray
Miter gauge
5/8" Bi-metal blade
Extension roller
Blade speed and pitch selector
See more Jet equip. at www.nevinsmachineryconcepts.com
