No. STC-18/08CNC, SUPERTEC, Wrk. dia .04"-3.15",Whl size 18"x8/10/12"x9",10- 300rpm   Our stock number: 440003

No. STC-18/08CNC, SUPERTEC, Wrk. dia .04 -3.15 ,Whl size 18 x8/10/12 x9 ,10- 300rpm

Make: SUPERTEC

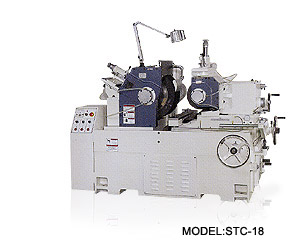

MODEL: STC-18/08CNC

GRINDING CAPACITY

Work diameter:
(with standard workrest) Ø1 ~ 60mm (0.04" ~ 2.3")
(with special workrest) Ø60~100mm (2.3" ~ 4")
Auto infeed increment
(Cll model) 0.001 ~ 99.999

GRINDING WHEEL:
Wheel size (d x w x b) 455 x 205/255/305 x 228.6
(18" x 8/10/12" x 9")
Spindle speeds 1520 rpm
Dressing increment Per graduation 0.01mm (0.0005")
Per revolution 2mm (0.0625")
REGULATING WHEEL:
Wheel size (d x w x b) 255 x 205/255/305 x 111.2
(10" x 8/10/12" x 4~3/8")
Spindle speeds(10 stepd) 13-308 rpm

Handwheel per graduation: 0.05mm (0.002")
Per revolution: 3.5mm (0.2")
Swivelling angle: ±5°
Inclining angle: 5° - -3°
Dressing increment: per graduation 0.01mm (0.0005")
Per revolution 2mm (0.0625")
Rapid feeding of saddle handwheel: per graduation 0.05mm (0.002")
Per revolution 9mm (0.25")
Micro feeding of saddle handwheel: per graduation 0.001mm (0.00005")
Per revolution 0.2mm (0.00625")
MOTORS Grinding
Wheel motor: 15HP/20HP
Hydraulic motor: 2HP
Infeed servo motor (CII model): 1.5KW
WEIGHT Net (Approx.): 2850kg (6600 lb)
Gross (Approx.): 3150kg (7260 lb)
PACKING Length x Width x Height: 2900 x 1400 x 1850mm
(114" x 55" x 73")
