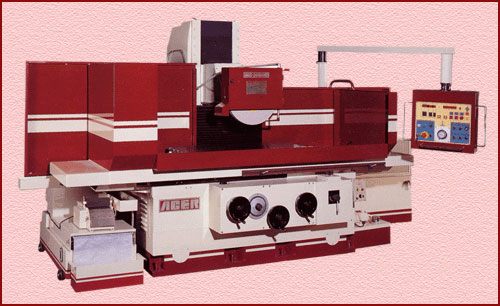

ACER, No. AGS-2448AHD, Tbl 24"x48",15Hp,Cr. feed trv 24-1/2",Tbl trv.52",(other avail)   Our stock number: 430005

ACER, No. AGS-2448AHD, Tbl 24 x48 ,15Hp,Cr. feed trv 24-1/2 ,Tbl trv.52 ,(other avail)

Make: ACER
Model: AGS-2448AHD
Working surface of table (WxL): 24"x48"
Max. grinding (WxL): 24"x48"
Max. table travel: 52"
Max. crossfeed travel: 24-1/2"
Distance between tabel surface and spindle center: 33"
Variable table speed by oil cylinder: 16~80 fpm
Automatic crossfeed carriage movement: 0~1"
Crossfeed hand wheel dia.: per graduation: 0.0001"
per revolution: .2"
Auto downfeed micro adjustment dial: per graduation: .0001"
Longitudinal travel from - to (AH, AHD): 6~48"
Crossfeed travel from-to (AH,AHD): 0~24-1/4"
Spindle Motor: 15Hp x 6 P (20HP OPT.)
Hydraulic pump motor: 5HP x 6P
Auto Crossfeed motor: 1/4HP x 6P
Auto downfeed motor: 400 W DC Servo Motor
Grinding wheel (O.D.x t x I.D.): 20"x5"x2"
Rotation speed of spindle (Horizontal): 1,150 RPM/60HZ
Flow rate of coolant pump: 40L/Min
Max. load Capacity in addition to magnetic chuck: 2,645 lbs
Machine net weight: 15,070 lbs
Machine gross weight: 16,500 lbs
Packing dimensions (LxWxH): 138" x 119" x 103"
See more Acer euqip at www.nevinsmachineryconcepts.com
