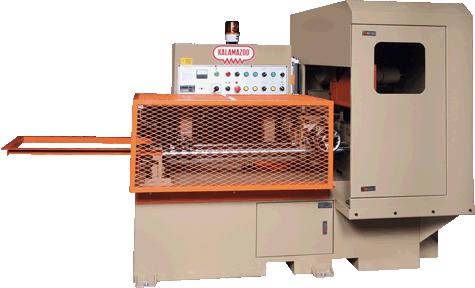

14", KALAMAZOO FHC350NA, Cap. @90° tube 4.33",sq. tube 4.33",5",5Hp,110v   Our stock number: 410014

14 , KALAMAZOO FHC350NA, Cap. @90° tube 4.33 ,sq. tube 4.33 ,5 ,5Hp,110v

Make: Kalamazoo
Model:FHC350NA
Drive Motor:5 hp (3.7kw)
Electricals:208/230v. or 460v. - 3ph
Control:110v.
Coolant:Standard
Spindle Speeds: 3200rpm
Max. Blade Size:14" (350mm)
Max. Clamping Cap.:5.9" (150mm)
Feed Length Range
Single stroke.2" - 27.5" (5-700mm)
Double stroke.2" - 55" (5-1400mm)
Single stroke.2" - 82.5" (5-2100mm)
Recommended Cutting Capacity
Round tube @ 90°:4.33" (110mm)
Square tube @ 90°:4.33" (110mm)
Rectangular tube @ 90°:4.33" x 3.5" (110 x 90mm)
Round solid @ 90°:3.5" (90mm)
Square solid @ 90°:3" (75mm)
Dimensions
Length x Width:86" x 56"
Height: 63"
Net Weight:1,984 lbs. (900kg)
Shipping Weight:2,205 lbs. (1000kg)
See more Kalamazoo equip. at www.nevinsmachineryconcepts.com
