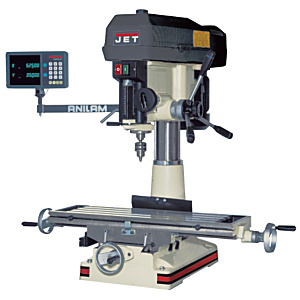

JMD-18PFNA JET, Tble 9.5"x31.75",Sw 15-7/8",R-8,12 Sp,Qu dia 3",(other Jet avail)   Our stock number: 480015

JMD-18PFNA JET, Tble 9.5 x31.75 ,Sw 15-7/8 ,R-8,12 Sp,Qu dia 3 ,(other Jet avail)

Make: Jet
Model: JMD-18PFNA
Part Number: 350129
Number of Spindle speeds: 12
Spindle Taper: R-8
Quill Diameter: 3"
Max Distance Spindle to Table: 18"
Table Longitudinal Travel: 24"
Table Cross Travel: 7"
T-Slots Number and Size: 4 and 5/8"
T-Slot Centers: 1 - 13/16"
Drilling Capacity: 1-1/4"
Face Mill Capacity: 3"
End Mill Capacity: 3/4"
Swing: 15-7/8"
Column Diameter: 4-1/2"
Quill Travel (in.): 150 - 3000
Table Size: 9-1/2" X 31-3/4"
Base Dimensions (in.): 15-3/4 X 23-3/4
Motor: 2 HO, 1 Ph, 230V only
Overall Dimensions: L 42-1/2 X W 39-3/4 X H 43-1/2
Height: 43.5"
Width: 39.75"
Length: 42.5"
Net Weight: 710 lbs

Details
One piece cast iron column for added support
Belt cover – quick slide latch allows faster belt adjustment to change spindle speeds
Base – taper allows for easier clean-up
Larger hand wheel knobs
UL Listed motor
Extra large work table
Heavy duty tapered roller bearings support the spindle, resulting in greater tolerance and more accu
ate drilling depth
New positive quick-stop knob and easy to read internal depth gauge (external on JMD-15)
360° head swivel
Work lamp
Adjustable carbide facemill
Drill press angle vise
½” drill chuck, chuck arbor
Draw bar
