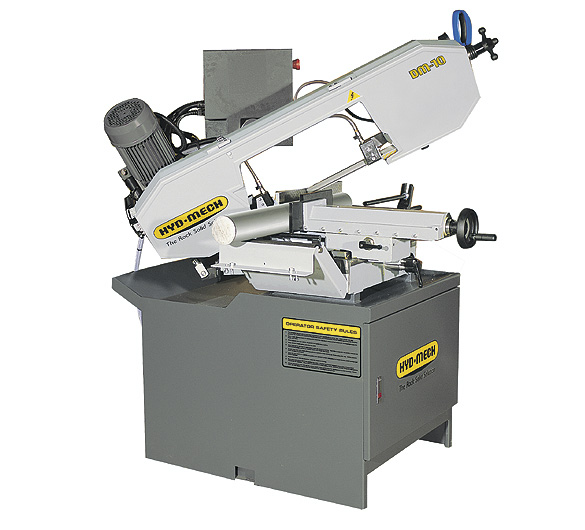

HYD-MECH, No. DM-10, Bl 1"x116",2-2.5HP,Double Mitre,Bl tension meter,(oth. mod. avail)   Our stock number: 500004

HYD-MECH, No. DM-10, Bl 1 x116 ,2-2.5HP,Double Mitre,Bl tension meter,(oth. mod. avail)

MAKE: Hyd-Mech
Model: DM-10
Capacity 90°:
Rectangle:7.75" x 11" 197 mm x 279 mm
Square: 9" 229 mm
Round: 9.75" 248 mm
Capacity Rec 45°:
Left:8.25" x 7"210 mm x 178 mm
Right:6.25" x 4.5" 159 mm x 114 mm
Capacity Square 45°:
Left: 7" 178 mm
Right: 5" 127 mm
Capacity Round 45°:
Left: 7.25"184 mm
Right: 5.75" 146 mm
Capacity Rec 60°:
Left: 5" x 4.5" 127 mm x 114mm
Capacity Square 60°:
Left: 4.5" 114mm
Right: N/A N/A
Capacity Round 60°:
Left: 4.5" 114mm
Right: N/AN/A
Blade Dimensions: 1" x 9’8” 25mm x 2946mm
Blade Drive: 2-2.5 hp 1.5-1.8 kW
Blade Speed: 140-280 SFM 43-85 m/min
Blade Wheel Diameter: 12" 305mm
Coolant Tank Capacity: 3.5 US Gal 13 litres
Table Height: 34" 864 mm
Machine Weight: 1100 lbs 499 kg
Machine Dimensions: 70" wide 1778mm wide
30" long 762mm long
72" high 1829mm high
Standard Features:
*Carbide guides provide consistent accuracy with
less vibration and extended blade life
*Heavy-duty cast iron head and wheels
*Conveniently located control panel within safe
operator reach
*Cast iron, easy sliding vise allows for 60º miter
left and right
*Blade tension meter displays blade tension
setting which also serves as a blade breakage switch to shut down
the machine when tension drops below 30 bars
*Built in limit switches that disable the machine
when doors are open
*Calibrated work stop with imperial
or metric scale
*Infeed and outfeed roller table
*Single phase electrical
*Pneumatic vise & foot pedal with 5’ cord
