7"x8 1/8"x7",Edwards 50 Ton,Jaws IV,2 Sec Cycle,5HP,Pump 3.5GPM,7 Gal.Res, ** Please specify voltage & phase , *** BRAND NEW   Our stock number: 520000

7 x8 1/8 x7 ,Edwards 50 Ton,Jaws IV,2 Sec Cycle,5HP,Pump 3.5GPM,7 Gal.Res, ** Please specify voltage & phase , *** BRAND NEW

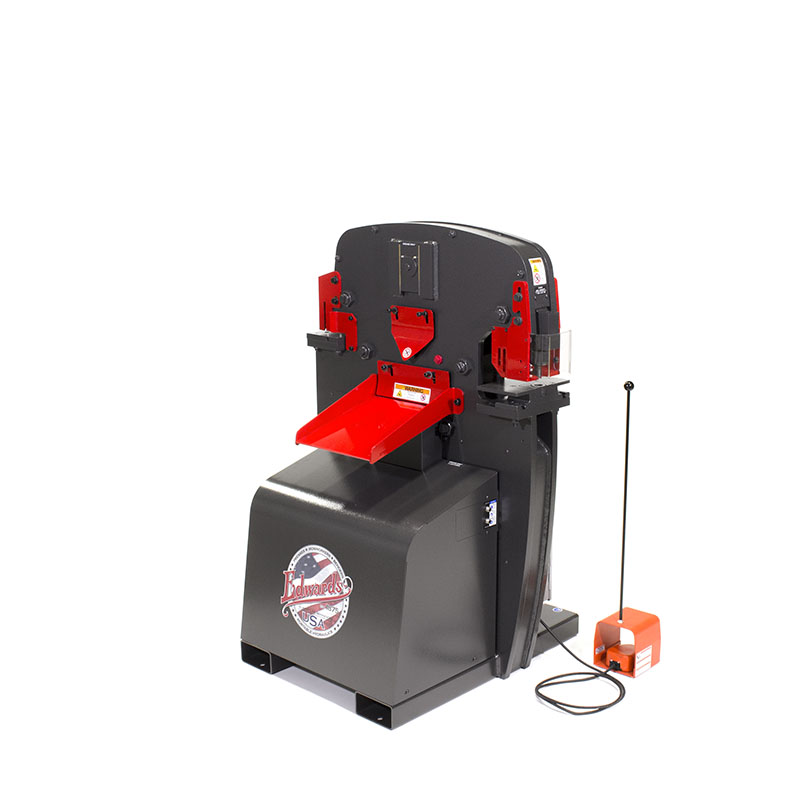

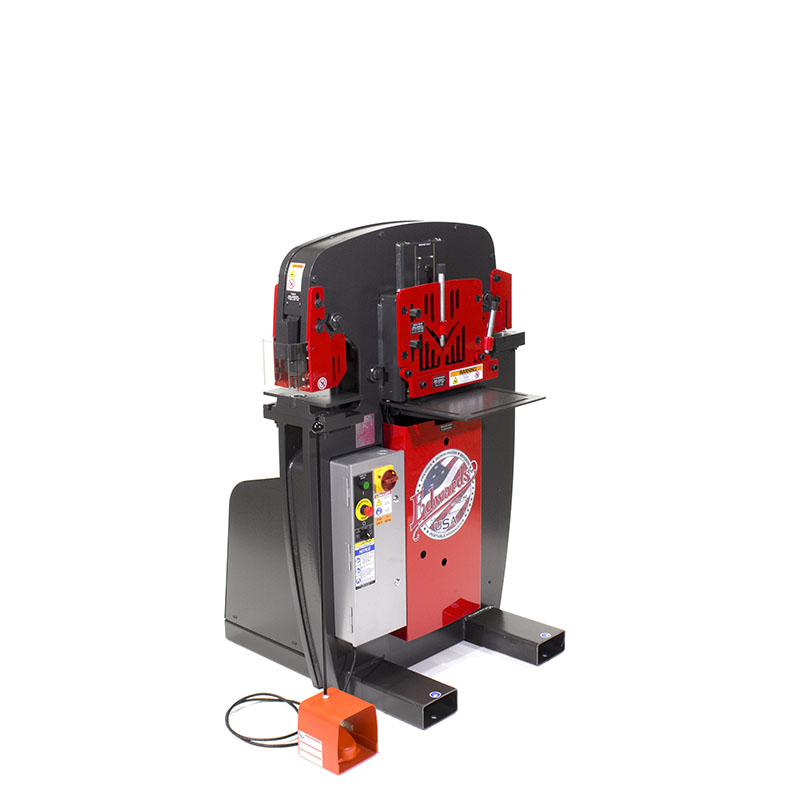

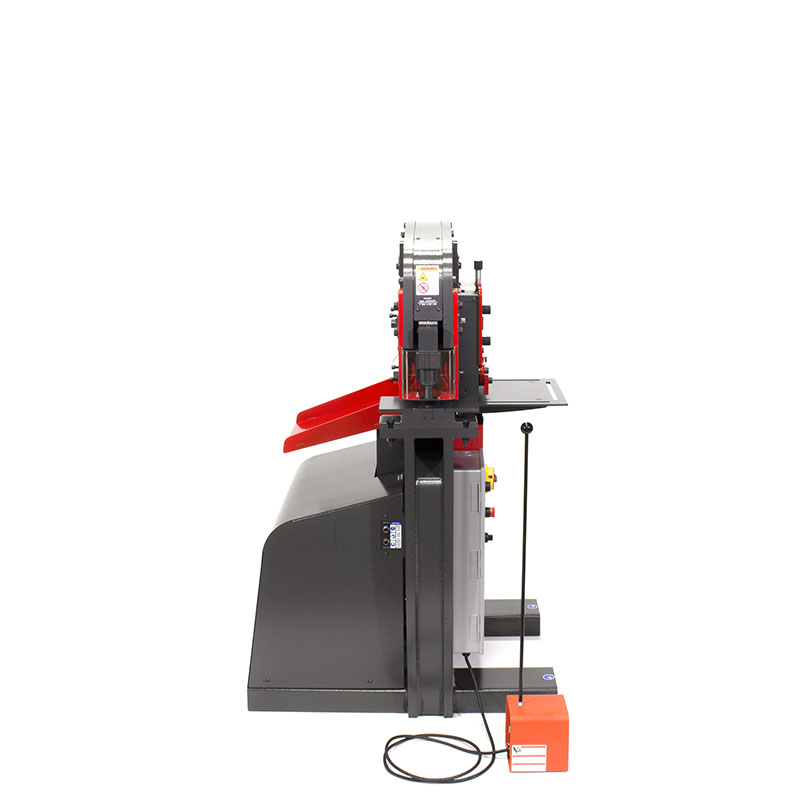

Click on picture below for larger version
7 x8 1/8 x7 ,Edwards 50 Ton,Jaws IV,2 Sec Cycle,5HP,Pump 3.5GPM,7 Gal.Res, ** Please specify voltage & phase , *** BRAND NEW7 x8 1/8 x7 ,Edwards 50 Ton,Jaws IV,2 Sec Cycle,5HP,Pump 3.5GPM,7 Gal.Res, ** Please specify voltage & phase , *** BRAND NEW7 x8 1/8 x7 ,Edwards 50 Ton,Jaws IV,2 Sec Cycle,5HP,Pump 3.5GPM,7 Gal.Res, ** Please specify voltage & phase , *** BRAND NEW

Specifications for #520000 Edwards 50 Ton Jaws IV Iron Worker (BRAND NEW)

Make:Edwards
Model: Jaws IV

GENERAL SPECS:
Rated Capacity:50 ton
Throat Depth:7"
Open Height:8-1/8"
Shut Height:7"
Stroke:1-1/8"
Cycle Time:2 seconds
Electric Motor:Standard 5 HP, 3 Phase, 208/240 v, 1725 rpm, 14 amp
Electric Motor Options:5 HP, 3 Phase, 440/480 v or 575 v, 7 amp
5 HP, 1 Phase, 208/240 v, 1725 rpm, 26 amp
Hydraulic Pump Size:3-1/2 gpm - 1 stage
Valve Pressure:2500 psi
Reservoir:7 gallons
Cylinder:2-1/2" ram

PUNCH
Max. Capacity:1" dia. in 5/8" plate
Work Height:37-5/8"

FLAT BAR SHEAR
Max. Width:1/2" x 10"
Max. Thick.:3/4" x 4"
Max. Round:3/4"
Max. Square:3/4"
Work Height:35-1/2"

ANGLE SHEAR
Max. Size:4" x 4" x 1/4" or 3" x 3" x 3/8"
Work Height:40-3/4"

OPEN STATION
Max. Capacity:2" x 3" x 5/16"
Work Height:43-1/8"

OPTIONS Tooling and Accessories Oversized Punching Assembly
Back Gauge
Gauging Table
Coper Notcher (shown)
Angle Notcher
Pipe Notcher
Pedestal Die Table
Magna Light
Brake
Multi Shear
Rod Shear
Urethane Stripper
241 Punch Assembly
Electric Stroke Control

Dimensions: Base 28-1/4" x 38-1/2"
Height:54"
Shipping Weight:1550 pounds
