5 1/2" x 6" x 5", Edwards, 25 Ton,** Please Specify Volt and Phase***, 1725 RPM,Res. 3Gallon,*** BRAND NEW   Our stock number: 520001

5 1/2 x 6 x 5 , Edwards, 25 Ton,** Please Specify Volt and Phase***, 1725 RPM,Res. 3Gallon,*** BRAND NEW

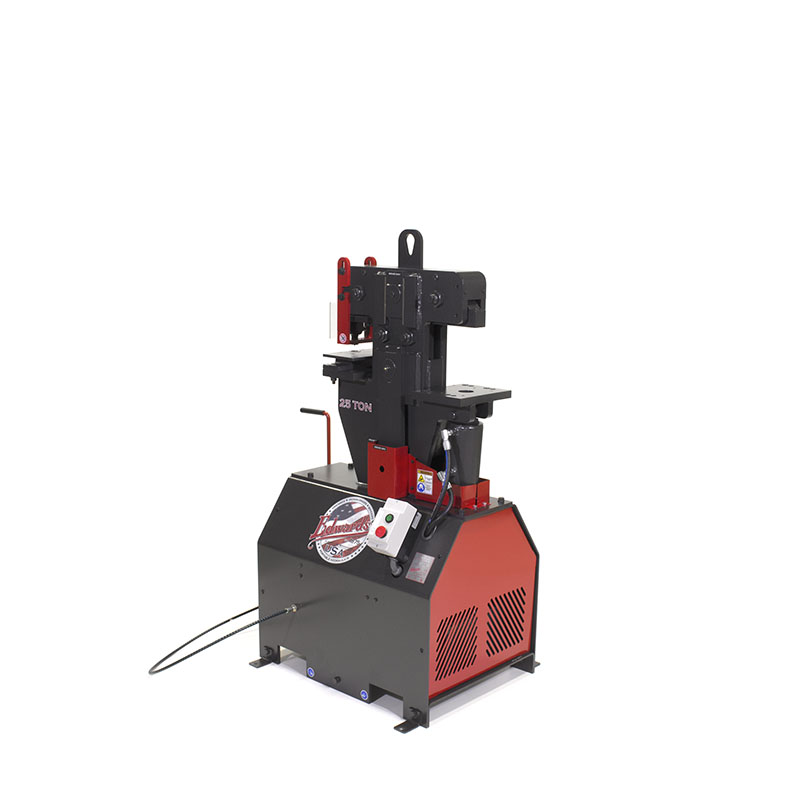

Click on picture below for larger version
5 1/2 x 6 x 5 , Edwards, 25 Ton,** Please Specify Volt and Phase***, 1725 RPM,Res. 3Gallon,*** BRAND NEW5 1/2 x 6 x 5 , Edwards, 25 Ton,** Please Specify Volt and Phase***, 1725 RPM,Res. 3Gallon,*** BRAND NEW

Specifications for #520001 Edwards 25 Ton Iron Worker (BRAND NEW)

Make: Edwards

GENERAL SPECS
Rated Capacity:25 ton
Throat:5-1/2"
Open Height:6"
Shut Height:5"
Stroke:1"
Electric Motor Standard:1 HP, 1 Phase, 208/220 v, 1725 rpm, 7 amp
Electric Motor Option:1 HP, 1 Phase, 110 v, 1725 rpm, 14 amp
Hydraulic Pump Size:11 gpm - 2 stage
Valve Pressure:2200 psi
Reservoir:3 gallons
Cylinder:1-3/4" ram

PUNCH
Max. Capacity:1" dia. in 5/16" plate
Work Height:38-1/2"

OPEN STATION
Throat Depth:5"
Open Height:8"
Shut Height:7"
Stroke:1"
Work Height:35-3/4"

OPTIONS:Angle Notcher
Pipe Notcher
Coper/Notcher
Multi Shear (shown)
Rod Shear
Punching Assembly
Oversized Punching Assembly
241 Punch Assembly
Brake
ACCESSORIES
Pedestal Die Table
Magna Light
Urethane Stripper

Dimensions: Base 29" x 23"
Height:55"
Shipping Weight:1000 pounds

2 Available Stations:Punching Station & Universal Open Tooling Station
Specialized for Smaller Jobs!
