7" x 8" x 7",Edwards, 40Ton,7Gallon Res,5HP,208/230V,1725RPM,3.5GPM Pump,** specify voltage & Phase **BRAND NEW   Our stock number: 520002

7 x 8 x 7 ,Edwards, 40Ton,7Gallon Res,5HP,208/230V,1725RPM,3.5GPM Pump,** specify voltage & Phase **BRAND NEW

Click on picture below for larger version
7 x 8 x 7 ,Edwards, 40Ton,7Gallon Res,5HP,208/230V,1725RPM,3.5GPM Pump,** specify voltage & Phase **BRAND NEW7 x 8 x 7 ,Edwards, 40Ton,7Gallon Res,5HP,208/230V,1725RPM,3.5GPM Pump,** specify voltage & Phase **BRAND NEW7 x 8 x 7 ,Edwards, 40Ton,7Gallon Res,5HP,208/230V,1725RPM,3.5GPM Pump,** specify voltage & Phase **BRAND NEW7 x 8 x 7 ,Edwards, 40Ton,7Gallon Res,5HP,208/230V,1725RPM,3.5GPM Pump,** specify voltage & Phase **BRAND NEW

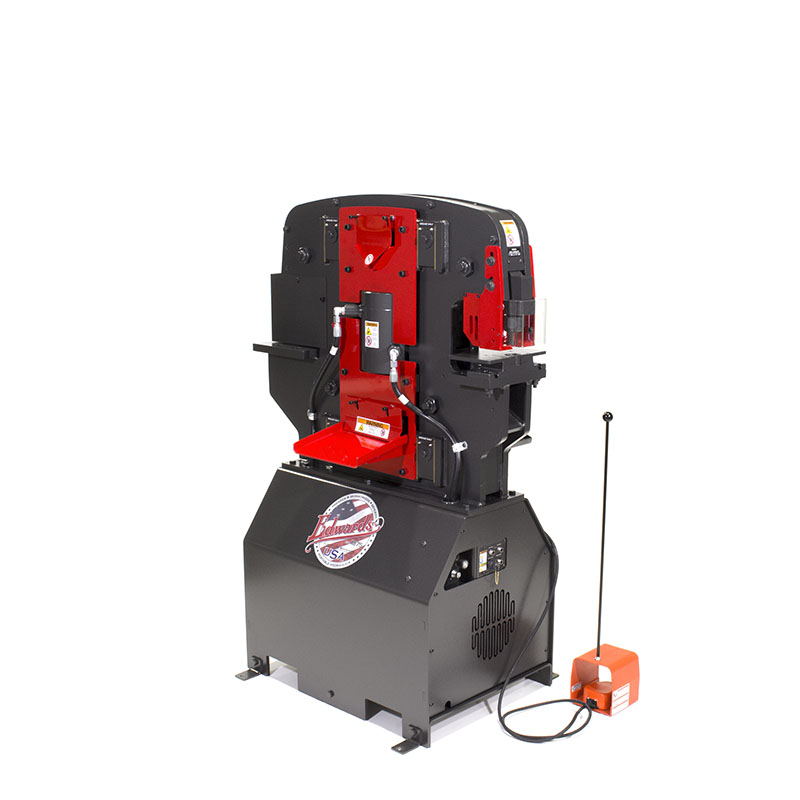

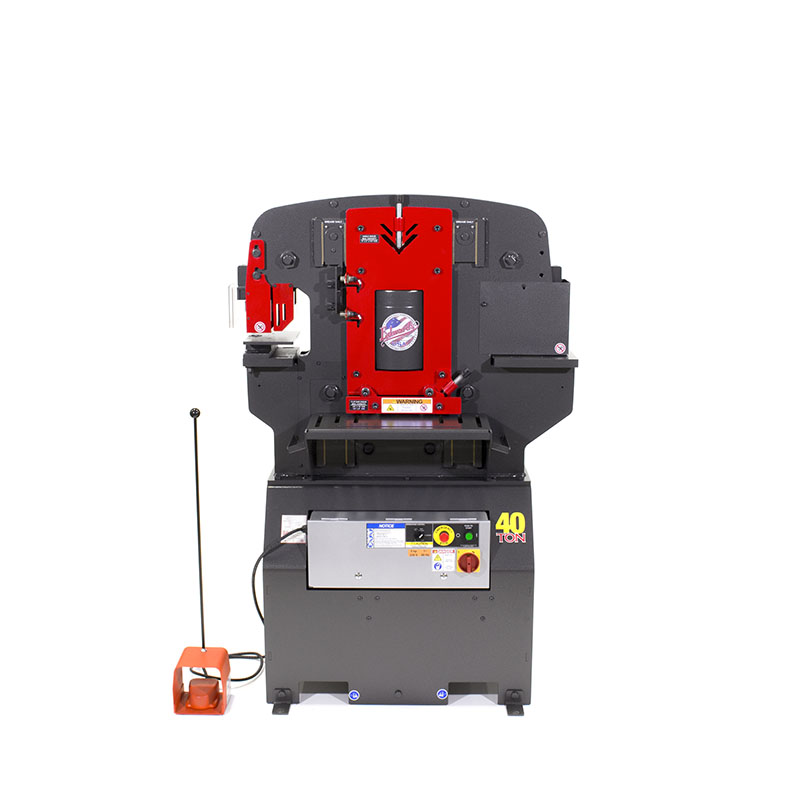

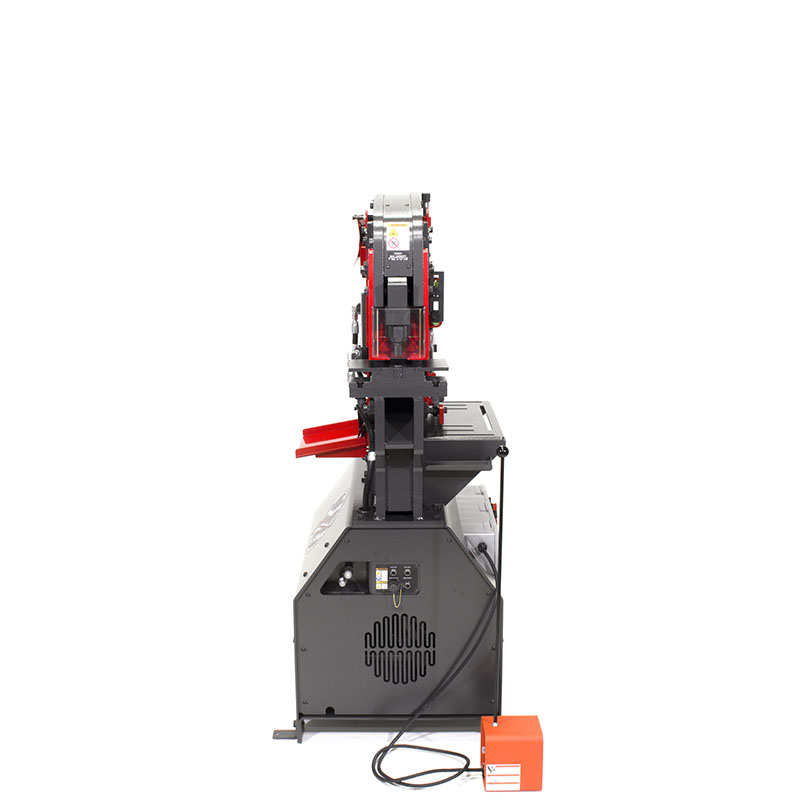

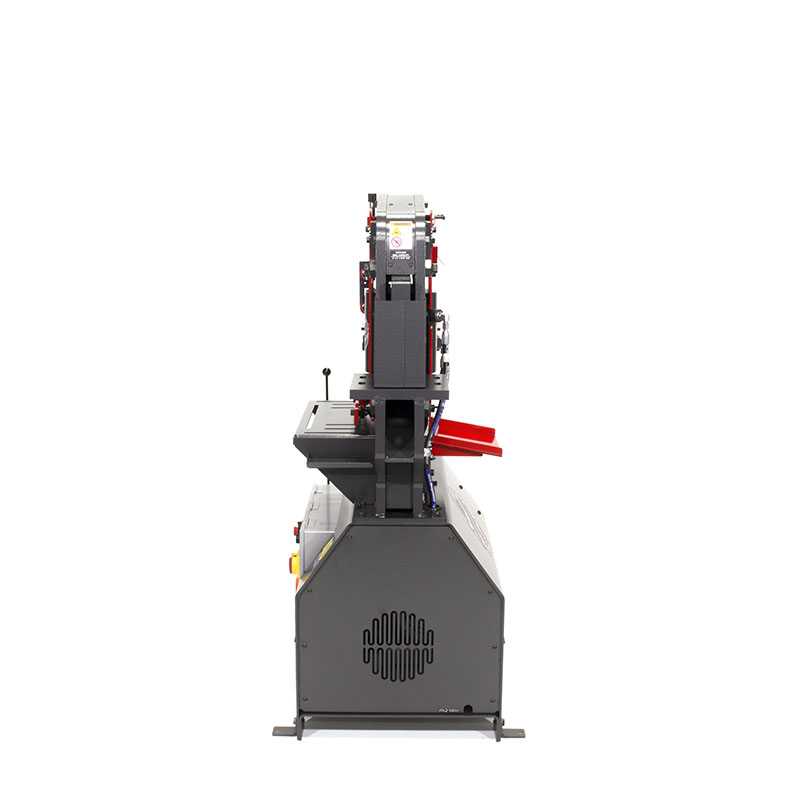

SPECIFICATIONS #520002 Edwards 40 Ton Iron Worker (BRAND NEW)

Make: Edwards

GENERAL SPECS
Rated Capacity:40 ton
Throat Depth:7"
Open Height: 8"
Shut Height: 7"
Stroke:1-3/8"
Cycle Time: 2 seconds
Electric Motor Standard: 5 HP, 3 Phase, 208/240 v, 1725 rpm, 14 amp
Electric Motor Options: 5 HP, 3 Phase, 440/480 v or 575 v, 7 amp,
5 HP, 1 Phase, 208/240 v, 1725 rpm, 26 amp
Hydraulic Pump Size: 3-1/2 gpm - single stage
Valve Pressure: 3000 psi max.
Reservoir: 7 gallons
Cylinder: 8-1/2" - 2-1/2" ram

PUNCH
Max. Capacity:1" dia. in 1/2" plate
Work Height:41-1/2"

FLAT BAR SHEAR
Max. Thick: 3/8" x 10"
Work Height: 33-1/2"

ANGLE SHEAR
Max. Size: 3" x 3" x 1/4"
Work Height: 52-1/2"

OPTIONS
Tooling and Accessories Oversized Punching Assembly
Back Gauge
Gauging Table
Angle Notcher
Pipe Notcher
Brake
Multi Shear
Rod Shear
Urethane Stripper
241 Tooling
Coper Notcher
Electric Stroke Control

Optional (A)ccessory Hydraulic Package

“Plug and play” with NEW 10 Ton Pipe Bender and 50 Ton McPunch
