10" x 8 1/2" x 7",Edwards,100Ton Deluxe Jaws V, ** Please specify voltage & Phase, 1725RPM,24GPM,Brand New   Our stock number: 520008

10 x 8 1/2 x 7 ,Edwards,100Ton Deluxe Jaws V, ** Please specify voltage & Phase, 1725RPM,24GPM,Brand New

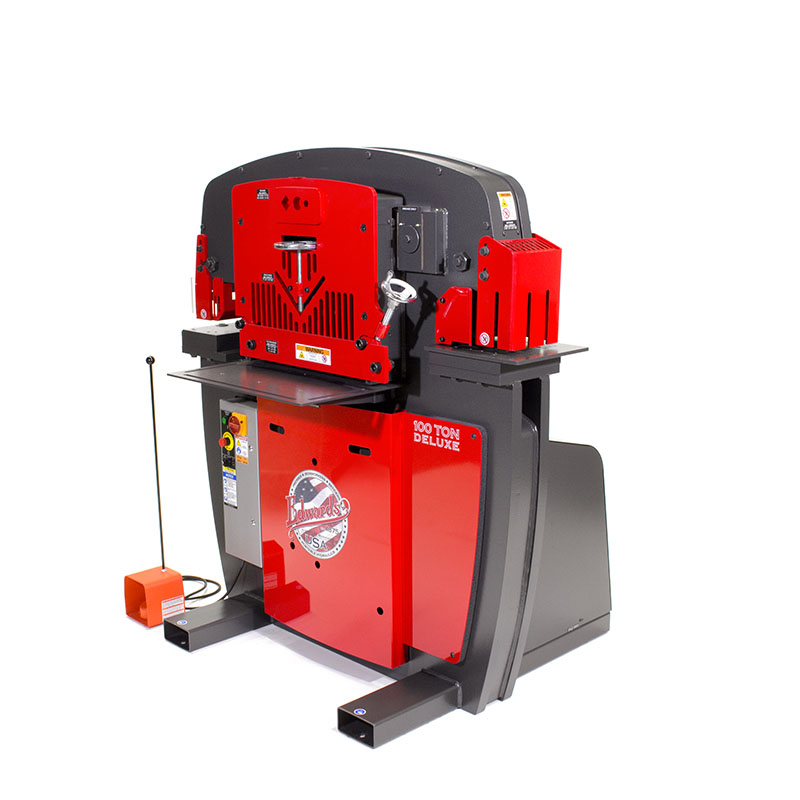

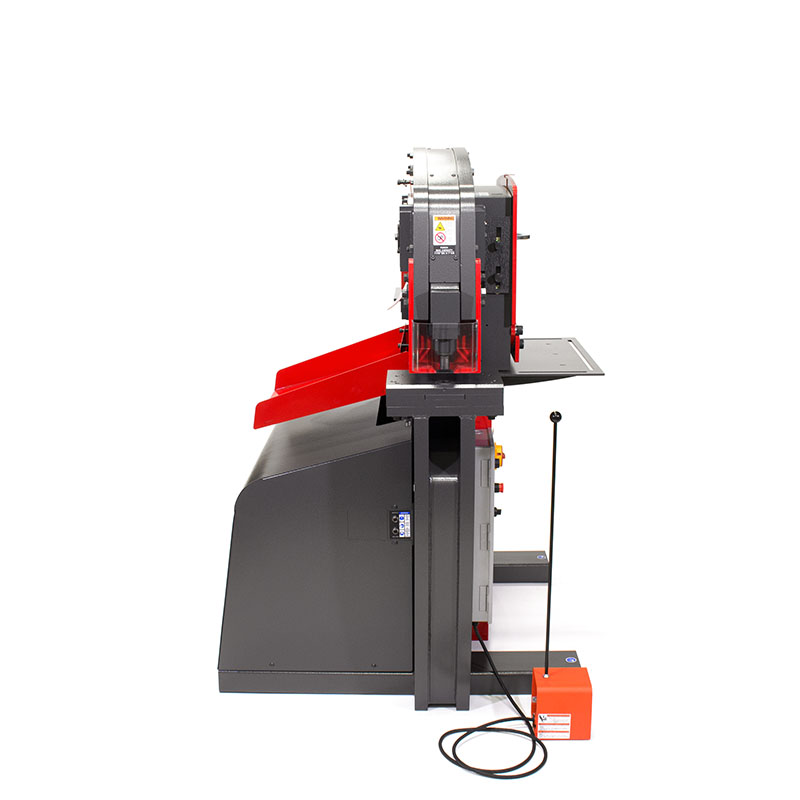

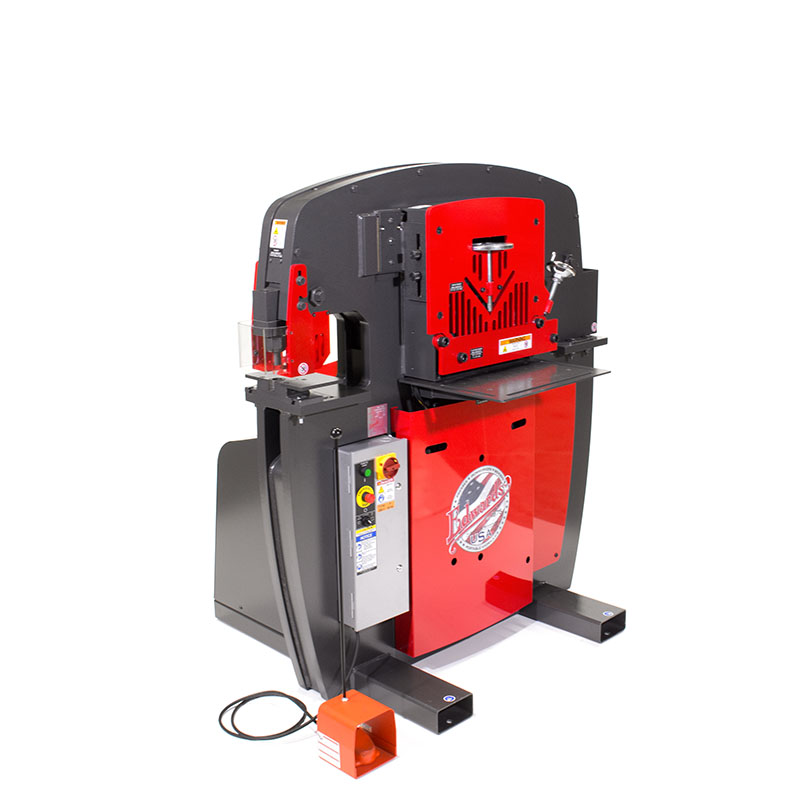

Click on picture below for larger version
10 x 8 1/2 x 7 ,Edwards,100Ton Deluxe Jaws V, ** Please specify voltage & Phase, 1725RPM,24GPM,Brand New10 x 8 1/2 x 7 ,Edwards,100Ton Deluxe Jaws V, ** Please specify voltage & Phase, 1725RPM,24GPM,Brand New10 x 8 1/2 x 7 ,Edwards,100Ton Deluxe Jaws V, ** Please specify voltage & Phase, 1725RPM,24GPM,Brand New

Specifications for #520008 Edwards 100 Ton Deluxe Jaws V Iron Worker (BRAND NEW)

Make: Edwards
Model:Deluxe Jaws V

GENERAL SPECS
Rated Capacity:100 ton
Throat Depth:10"
Open Height:8-1/2"
Shut Height:7"
Stroke:1-3/8"
Cycle Time:1/2" x 2" - 2 seconds
Electric Motor Standard:10 HP, 3 Phase, 208/240 v, 1725 rpm, 26 amp
Electric Motor Options:10 HP, 3 Phase, 440/480 v or 575 v, 13 amp
Hydraulic Pump Size:24 gpm
Valve Pressure:3600 psi
Reservoir:17 gallons
Cylinder:2-1/2" Ram

PUNCH
Max. Capacity:1-1/16" dia. in 1" plate
Work Height:36"

FLAT BAR SHEAR
Max. Width:1/2" x 16"
Max. Thick:1" x 6" or 3/4" x 12"
Max. Round:1"
Max. Square:1"
Work Height:34"

ANGLE SHEAR
Max. Size:5" x 5" x 1/2"
Work Height:40"

COPER/NOTCHER
Max. Capacity:3" x 5" x 1/2"
Work Height:36"

ROD SHEAR
Max. Round:1-1/2"
Max. Square:1-1/4"
Work Height:50"

OPTIONS Tooling and Accessories Oversized Punching Assembly
Angle Notcher
Pipe Notcher
Brake
Multi Shear
241 Punch Assembly
Back Gauge
Gauging Table
Pedestal Die Table
Magna Light
Urethane Stripper Standard
Dimensions: Base 43" x 44"
Height:62"
Shipping Weight:4850 pounds

5 Available Stations - Built-in Rod Shear for Square & Round / Electric Foot Pedal,
Electric Stroke Standard & 18” Bar Shear
