16" x 39" cc, Knuth, Swing over support 10",2"Bore,7.4HP,X Axis 8", Z1 Axis 4", "NEW"   Our stock number: 560006

16 x 39 cc, Knuth, Swing over support 10 ,2 Bore,7.4HP,X Axis 8 , Z1 Axis 4 , NEW

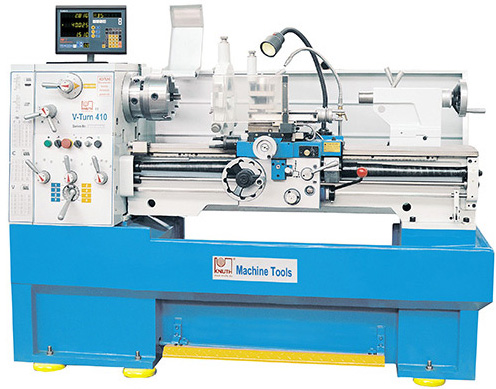

560006 KNUTH V-TURN 410 16" X 39" LATHE "BRAND NEW"

Distance between centers: 39 "
Turning diameter over bed (max.) 16 "
Turning diameter over support (max.) 10 "
Turning diameter over gap bridge (max.) 23 "
X-axis: 8 "
Z1-axis: 4 "
Gap bridge length:10 "
Bed width:10 "
Swing range of top slide:± 45 °
Speed ranges:high 550 - 3000 rpm (infinitely variable)
low 30 - 550 rpm (infinitely variable)
3-axis position indicator with integrated spindle speed display
Spindle bore:2 "
Spindle mount Camlock:D1-6
Spindle taper:MT 6
Feed X-axis:0 - 0.03 "/R
Feed Z-axis:0 - 0.07 "/R
Tapping:Metric (39) 0,2-14 mm
Diametric (21) 8-44 DP
Module (18) 0.01 - 0.14 "
Whitworth (45) 2-72 GPZ
Resolution: 0.0004 / 0.0002"
Tailstock quill diameter:2 "
Tailstock taper:MT 4
Tailstock quill stroke:5 "
Tailstock traverse adjustment:± 6,5 mm / ± 0.3"
Motor rating main drive:7.4 Hp
Measures and weights:Overall dimensions 76x32x50 "
Weight 3410 lbs

Standard equipment: 3-axis position indicator, 4-jaw face plate chuck Ø 10",
face plate (13" diam.), change gears, 4-station tool holder / storage for 10 tools ,
coolant system, steady and follow rest, turret stop, micrometer stop,
chip tray, fixed splash guard (wall), protective shield for support, chuck guard,
foot brake pedal, halogen lights, thread gauge, hole circle pattern calculation,
calculator function, radius / diameter toggle, mm/inch conversion,
operating tools, and operator's manual

*** A quick-action tool changer system is available as an option
*** Easy expansion and maintenance-free operation
