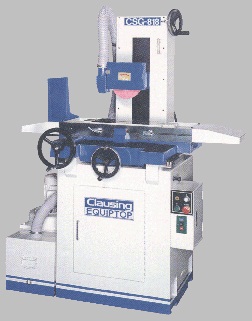

8" x 18", CLAUSING CSG818H, Max Grind length 19",Width 9 3/8",1 1/14"Bore   Our stock number: 410020

8 x 18 , CLAUSING CSG818H, Max Grind length 19 ,Width 9 3/8 ,1 1/14 Bore

SPECIFICATIONS MODEL CSG-818
Table Size: 203 x 460mm (8" x 18")
Max. grinding length Longitudinal:480mm (19")
Max. grinding width Crosswise:238mm (9 3/8")
Max. Distance from table surface to spindle centerline:460mm (18")
Standard magnetic chuck size:200 x 450mm (8" x 18")
Longitudinal movement of table Max. travel:manual 510mm (20")
Cross transverse travel Max. manual transverse travel:250mm (9 3/4")
Handwheel per revolution:5mm (0.2")
Handwheel per graduation:0.02mm (0.0005")
Wheelhead vertical infeed Handwheel per revolution:1mm (0.04")
Handwheel per graduation:0.005mm (0.0001")
Grinding spindle drive Speed:60Hz: 3450 RPM; 50Hz: 2850 RPM
Power rating: 2 HP
Standard grinding wheel Diameter:203mm (8")
Width 12mm (1/2"), Max: 19mm (3/4")
Bore: 31.75mm (1 1/4")
Floor space Total space required:1810 x 1285 x 1680mm (71" x 50 1/2" x 66")
Weights Net weight, Approx.:1060 kgs (2332 lbs)
Gross weight, Approx.: 1090 kgs (2398 lbs)
Rated power, approx.: 2 HP
Packing dimensions:L x W x H 1092 x 920 x 1870mm (43" x 36" x 73 1/2")
