4' x 10 1/4", JET, 1 1/2 - 3HP/230V/3PH,12 Spd 44-1500RPM,33 21/32 Spindle to Table,BRAND NEW other size avail   Our stock number: 480024

4' x 10 1/4 , JET, 1 1/2 - 3HP/230V/3PH,12 Spd 44-1500RPM,33 21/32 Spindle to Table,BRAND NEW other size avail

Click on picture below for larger version
4' x 10 1/4 , JET, 1 1/2 - 3HP/230V/3PH,12 Spd 44-1500RPM,33 21/32 Spindle to Table,BRAND NEW other size avail

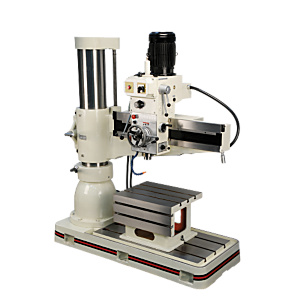

Brand New Jet 4’ Arm Radial Drill

MAKE: Jet
MODEL: J-1100R-4
Part Number: 320034
Motor: 1-1/2 to 3 HP, 230V, 3 Ph
Number of Spindle speeds: 12 (44-1500)
Spindle Taper: MT-4
Max Distance Spindle to Table (in.): 33-21/32
T-Slots Number and Size (in.): 3 & 3/4
Column Diameter (in.): 10-1/4
Drilling Capacity Cast Iron (in.): 2-1/4
Drilling Capacity Mild Steel (in.): 1-3/4
Tapping Capacity Cast Iron (in.): 1-1/4
Tapping Capacity Mild Steel (in.): 1
Boring Capacity Steel (in.): 3-3/8
Boring Capacity Cast Iron (in.): 4-3/4
Distance Column to Spindle (max/in.): 43-5/16
Distance Column to Spindle (min/in.): 9-5/8
Travel of Head Horizontal (in.): 32-1/4
Distance Base to Spindle (max/in.): 50
Distance Base to Spindle (min/in.): 18-1/2
Arm Travel Vertical (in.): 22-7/16
Quill Travel (in.): 9
Quill Travel w/ Power feed engaged (in.): 8-21/32
Quill Down feed Rates (IPR): 3 (.002, .004, .006)
Elevating Motor: 1 HP
Base Dimensions (in.): 67-3/4 X 28 X 6-1/2
Coolant Pump Motor: 1/8 HP
Table Dimensions (in.): 24-3/4 X 20-1/2 X 16-1/2
Overall Dimensions: 74 x 34 x 89
Height: 89 inch
Width: 34 inch
Length: 74 inch
Net Weight: 4190 pound
