7" x 14", Kalamazoo KC812W, 1" x .035 x 107"Blade,8"Rnd,7"Sq,1HP,110 or 220V,1PH,Wet Cut,brand new(other models avail)   Our stock number: 410021

7 x 14 , Kalamazoo KC812W, 1 x .035 x 107 Blade,8 Rnd,7 Sq,1HP,110 or 220V,1PH,Wet Cut,brand new(other models avail)

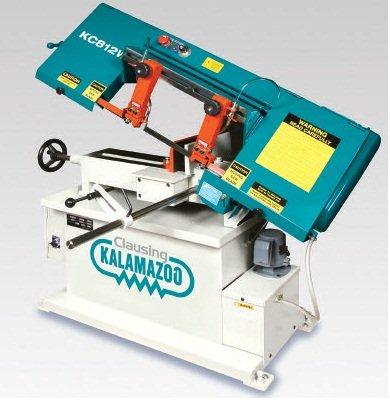

BRAND NEW KALAMAZOO KC812W MANUAL HORIZONTAL BAND SAW WITH COOLANT SYSTEM

Make:Kalamazoo
Model: KC812W
Type : Horizontal wet cut
Drive Motor: 1Hp (.75kw) 110v or 220v 1 Ph
Band Wheel Diameter : 11.5 (292mm) Flanged, Cast Iron
Blade (W x T x L) : 1" x .035" x 8'-11" (27 x .9 x 2720mm)
Bed Height: 24.8" (639mm)
Blade Speeds: (4) 59, 96, 155, 260 fpm (18, 29, 47, 79 m/min)
90° Cutting Capacity
Round: 8" (200mm)
Square: 7" (180mm)
Rectangular (H x W): 7" x 14" (180 x 290mm)
Width: 59" (1500mm)
Depth: 24.6" (625mm)
Height (head-up): 63" (1600mm)
Height (head-down): 45" (1150mm)
Net Weight: 484 lbs (220kg)
Shipping Weight: 580 lbs (263kg)
Shipping Dim. (LxWxH): 58" x 30" x 48" (1475 x 762 x 1220mm)

DETAILS:1 Hp (.75kw) drive motor with magnetic starter and overload protection
• 4 speed step step pulley with worm gear speed reducer, worm shaft is
hardened and ground
• Totally enclosed transmission
• Heavy-duty hydraulic cylinder with precision ground hinge support
• Pan shaped base with built-in coolant & hydraulic system
• Cast iron bed
• Carbide blade guides with roller bearings
• Two additional bearings to support blade from the top
• Recirculating coolant system with application through both guides
• Blade brush
• Valve controlled hydraulic cylinder controls feed and cutting rate and can be adjusted for di
ferent types and sizes of material
• Adjustable stock stop
• Simplified control switches mounted on saw head
• Cast iron quick acting 0- 45° vise with manual leadscrew clamping system
• Anti-slip hand wheel
• Easy blade change with front access at waist level
• 1" wide bi-metal saw blade
• Tool box, leveling pads, and an additional wire brush
• Operation & parts manual
