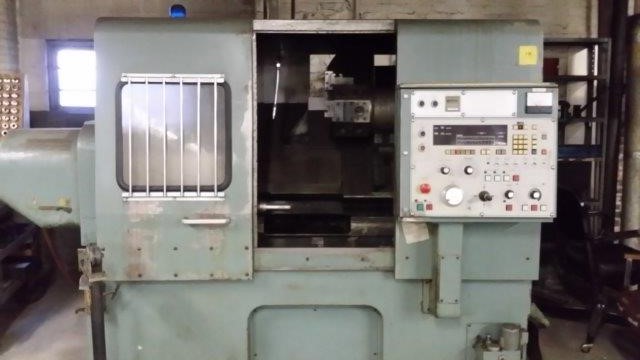

Mori Seiki SL2, Yasnac 2000G, 8"Chk, 2", SOB22.4",SOver carriage 20",SOCS 13.7",Long Travel14.1",Cross Travel 6.3",35-3200RPM,15HP,8Station Turret,'72   Our stock number: 101740

Mori Seiki SL2, Yasnac 2000G, 8 Chk, 2 , SOB22.4 ,SOver carriage 20 ,SOCS 13.7 ,Long Travel14.1 ,Cross Travel 6.3 ,35-3200RPM,15HP,8Station Turret,'72

Click on picture below for larger version
Mori Seiki SL2, Yasnac 2000G, 8 Chk, 2 , SOB22.4 ,SOver carriage 20 ,SOCS 13.7 ,Long Travel14.1 ,Cross Travel 6.3 ,35-3200RPM,15HP,8Station Turret,'72

Swing Over Bed 22.4”
Swing Over Front Cover 15.7”
Swing Over Carriage 20.0”
Swing Over Cross Slide 13.7”
Max. Longitudinal Travel / Work's Length 14.1"
Max. Cross Travel 6.3”
Spindle Center Height From Floor 43.3”
Programmable Spindle Speed Range 35 ~ 3200 rpm
Spindle Nose A1-6
Hole Thru Spindle ø2.04"
Bed's Slant 45°/45°
Turret Tool Positions 8 Stations
Hydraulic Chuck 8” 3 jaw
Main Motor 15 HP
Weight 8360 lbs
