1 1/2", Tsugami, No. MU38SY, Fanuc 18iTA, 12' Bar Feed,Twin Tureet,6 Live pos.,2005   Our stock number: 101609

1 1/2 , Tsugami, No. MU38SY, Fanuc 18iTA, 12' Bar Feed,Twin Tureet,6 Live pos.,2005

Click on picture below for larger version
1 1/2 , Tsugami, No. MU38SY, Fanuc 18iTA, 12' Bar Feed,Twin Tureet,6 Live pos.,20051 1/2 , Tsugami, No. MU38SY, Fanuc 18iTA, 12' Bar Feed,Twin Tureet,6 Live pos.,20051 1/2 , Tsugami, No. MU38SY, Fanuc 18iTA, 12' Bar Feed,Twin Tureet,6 Live pos.,20051 1/2 , Tsugami, No. MU38SY, Fanuc 18iTA, 12' Bar Feed,Twin Tureet,6 Live pos.,2005
1 1/2 , Tsugami, No. MU38SY, Fanuc 18iTA, 12' Bar Feed,Twin Tureet,6 Live pos.,20051 1/2 , Tsugami, No. MU38SY, Fanuc 18iTA, 12' Bar Feed,Twin Tureet,6 Live pos.,20051 1/2 , Tsugami, No. MU38SY, Fanuc 18iTA, 12' Bar Feed,Twin Tureet,6 Live pos.,20051 1/2 , Tsugami, No. MU38SY, Fanuc 18iTA, 12' Bar Feed,Twin Tureet,6 Live pos.,2005

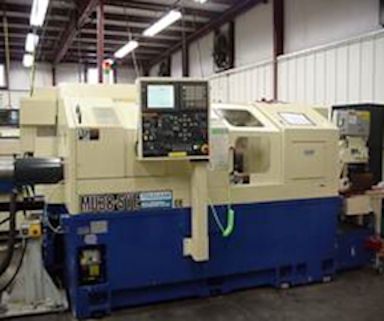

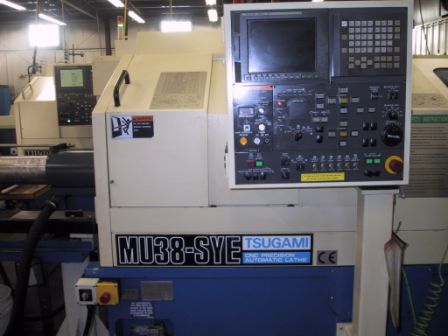

2005 TSUGAMI MU38SYE SWISS TYPE SCREW MACHINE #101609
Make:TSUGAMI
Model:MU38SYE
Age:2005

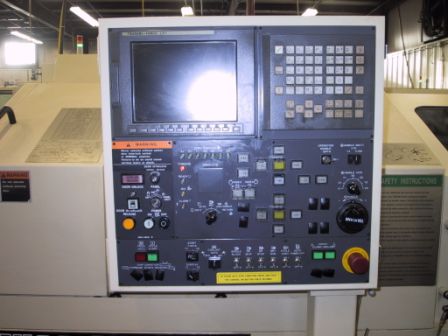

Control:Fanuc 18iTA
Simul. Control Axis: 6 (2 4)
Least Input Increments: 0.0001in (diameter for X-axis)
Stock Diameter: 1.500" ax. Machining Length: 9.8"
Max. Drilling Diameter: .63" in 1045 steel
Max Tapping Diameter: 1/2" in 1045 steel
Height of Sp. Center: 1,000 mm (39.37")
Spindle Speed: 60 to 5,000 rpm
Motor Output: 11 kw (14.7 hp)
Cutting Torque: 35 nm
Spindle Indexing: C-axis (.01 degrees)

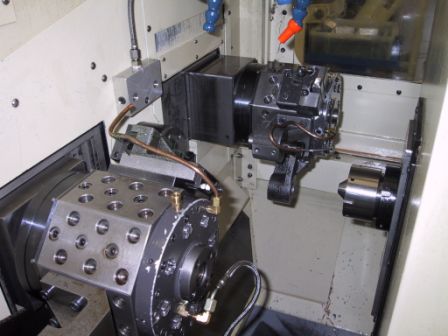

Number of Turrets: 2
Number of Mountable Plane: 8 surfaces/turret, 3 tool locations per surface
Indexing Time / Method: T1: 0.2 sec/pos. / T2: 0.3 sec/pos. / Servomotor
Idle Time (chip to chip): T1:0 to 1.5 sec / T2: 0 to 1.7 sec
Max. Speed of Drive Axis: T2 Turret 5,400 rpm
Back Spindle Speed: 60 to 5,000 rpm
Motor Output: 5.5 kw (7.5 hp)
Cutting Torque: 14 n-m
Spindle Indexing: 5 deg. (72 div.)
Stroke: X1, X2: 3.15" / Z1: 9.8" / Z2: 5.51"
Y (T2 Turret): 3.15" (Y & SY) / Z3: 11.22"
Rapid Traverse: X1, Z1, Z2, Z3: 787 ipm / X2: 472 ipm / Y: 394 ipm (Y & SY)
Dimensions / Weight:Approx (w x d x h): 139 x 81 x 70" / 11,500 lbs.
Equipped With: High Pressure Coolant System,

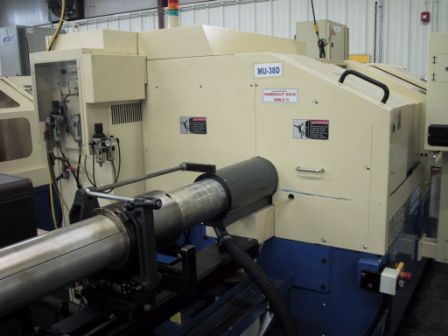

LNS HYS 6.38 Bar feed, OD & ID Holders and a couple of attac
ments
Box Ways,CE Specification, Tool Life Management, Rear Work E
ection,
Custom Macro B, 320M Storage, Parts Catcher, Part Conveyor,
atrol Lamp,
C Axis Sub Spindle, Rigid Tapping, 32 Pair Offsets, Soft Ind
x, Memory

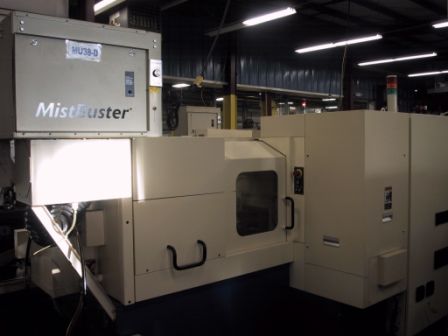

Card Interface, MPG Wheel, Mist Buster, 4 Port HP Pump and a
ditional
M Codes for HP Ports
