Table Saw, Jet, JTAS-12-DX,12"blade diameter,Arbor Diameter 1",4300RPM,5HP, 1PH,230V,brand new (other models available)   Our stock number: 480029

Table Saw, Jet, JTAS-12-DX,12 blade diameter,Arbor Diameter 1 ,4300RPM,5HP, 1PH,230V,brand new (other models available)

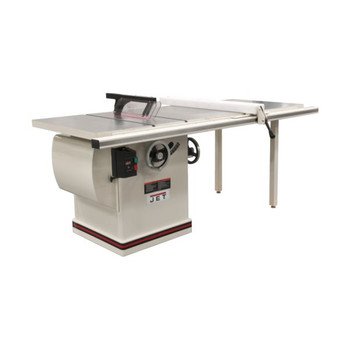

New Jet Woodworking Table Saw MODEL: JTAS-12-DX #480029

Style (Type):Cabinet
Blade Diameter (In.):12
Arbor Diameter (In.):1
Arbor Speed (RPM):4,300
Maximum Depth of Cut (In.):4
Maximum Depth of Cut at 45 Degrees (In.):2-7/8
Maximum Rip Left of Blade (In.):14
Maximum Rip Right of Blade (In.):50
Maximum Diameter of Dado (In.):8
Maximum Width of Dado (In.):13/16
Table Type:Cast Iron
Table Size (L x W) (In.):31.5 x 24
Table Size with Extension (L x W) (In.):31.5 x 80
Miter Gauge Type:T-Slot with Stops
Dust Collection Minimum CFM Required (CFM):350
Dust Port Outside Diameter (In.):4
Motor Power (HP):5
Motor Phase:1
Motor Voltage (V.):230
Prewired Voltage (V.):230
Motor Current (Amps.):15.2

•Riving knife maintains close blade proximity to reduce chance of kickback
•80” of solid cast iron provides a massive work surface
•Poly V-Belt increases efficiency and reduces slipping and vibration
•Collection shroud around the blade and integrated hose improve dust collection
•Integrated arbor lock is accessed from table top for rapid blade change
•External tool storage for the fence and miter gauge
•40-1/2” fence provides greater stability and better support when ripping
•Dado insert included
•Maximum rip left of the blade is 14"
•Removal of blade guard, pawls and riving knife takes only second

THIS SAW IS BRAND NEW and will be FACTORY SHIPPED. OTHER MODELS AVAILABLE.
