70.8"X, 33.9"Y, 29.5"Z, YCM TV 188B, Full 5 Axis, Fanuc MXP 200FB Control,78.7" x 33.8" Table, CAT 50, 32 Tools ATC, 6000 RPM, 25 HP, 12/2014   Our stock number: 101805

70.8 X, 33.9 Y, 29.5 Z, YCM TV 188B, Full 5 Axis, Fanuc MXP 200FB Control,78.7 x 33.8 Table, CAT 50, 32 Tools ATC, 6000 RPM, 25 HP, 12/2014

Click on picture below for larger version
70.8 X, 33.9 Y, 29.5 Z, YCM TV 188B, Full 5 Axis, Fanuc MXP 200FB Control,78.7 x 33.8 Table, CAT 50, 32 Tools ATC, 6000 RPM, 25 HP, 12/201470.8 X, 33.9 Y, 29.5 Z, YCM TV 188B, Full 5 Axis, Fanuc MXP 200FB Control,78.7 x 33.8 Table, CAT 50, 32 Tools ATC, 6000 RPM, 25 HP, 12/201470.8 X, 33.9 Y, 29.5 Z, YCM TV 188B, Full 5 Axis, Fanuc MXP 200FB Control,78.7 x 33.8 Table, CAT 50, 32 Tools ATC, 6000 RPM, 25 HP, 12/2014
70.8 X, 33.9 Y, 29.5 Z, YCM TV 188B, Full 5 Axis, Fanuc MXP 200FB Control,78.7 x 33.8 Table, CAT 50, 32 Tools ATC, 6000 RPM, 25 HP, 12/201470.8 X, 33.9 Y, 29.5 Z, YCM TV 188B, Full 5 Axis, Fanuc MXP 200FB Control,78.7 x 33.8 Table, CAT 50, 32 Tools ATC, 6000 RPM, 25 HP, 12/2014

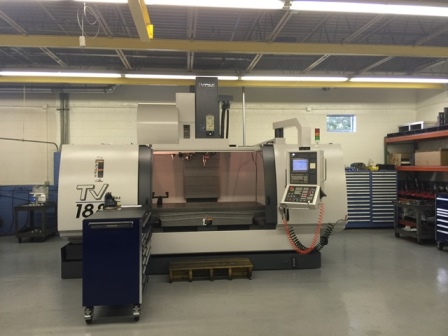

2014 YCM TV 188B FULL 5 AXIS CNC VERTICAL MACHINING CENTER #101805

MAKE:YCM
MODEL:TV 188B
AGE:2014

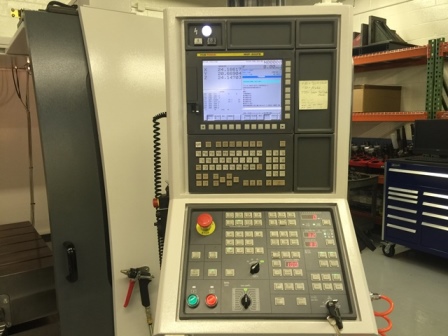

CONTROL:Fanuc MXP200FB
X AXIS:70.8”
Y AXIS:33.9
Z AXIS:29.5
# of AXES:Full 5 Axes

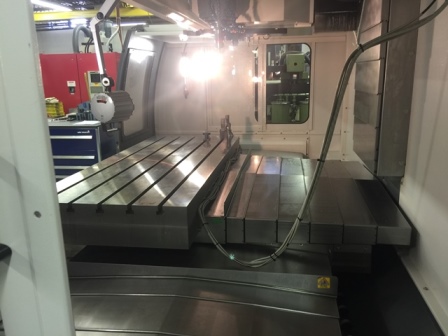

TABLE:78.7” x 33.8”
WORK PIECE:Maximum Weight 4,409 Lbs.
TAPER:CAT 50
TOOLS:32 Tools ATC
SPEED:6000 RPM (2 ranges)
HP:25 HP

EQUIPPED WITH:300 PSI Coolant, (1) Top Cover, Chip Conveyor, (2) Fanuc Drives, (2) Internal
Cable Sets, 5 Axis Hand Wheel, 2M Memory Storage, High Speed Skip (needed for
Probing), Blum TC50 Spindle Probe and Blum A4 Laser Tool Probe (maximum tool
7.3” diameter)

This machine is in MA and is being sold: “as is, where is”.
