6" x 18", HARIG, No. 618, 6x18 Table,19"Long Travel,6 3/4"Cross Feed Travel,12"vertical Height,7"x1/2"x1 1/4" Wheel,w/ Fine pole Walker mag chuck   Our stock number: 101807

6 x 18 , HARIG, No. 618, 6x18 Table,19 Long Travel,6 3/4 Cross Feed Travel,12 vertical Height,7 x1/2 x1 1/4 Wheel,w/ Fine pole Walker mag chuck

Click on picture below for larger version
6 x 18 , HARIG, No. 618, 6x18 Table,19 Long Travel,6 3/4 Cross Feed Travel,12 vertical Height,7 x1/2 x1 1/4 Wheel,w/ Fine pole Walker mag chuck6 x 18 , HARIG, No. 618, 6x18 Table,19 Long Travel,6 3/4 Cross Feed Travel,12 vertical Height,7 x1/2 x1 1/4 Wheel,w/ Fine pole Walker mag chuck6 x 18 , HARIG, No. 618, 6x18 Table,19 Long Travel,6 3/4 Cross Feed Travel,12 vertical Height,7 x1/2 x1 1/4 Wheel,w/ Fine pole Walker mag chuck
6 x 18 , HARIG, No. 618, 6x18 Table,19 Long Travel,6 3/4 Cross Feed Travel,12 vertical Height,7 x1/2 x1 1/4 Wheel,w/ Fine pole Walker mag chuck6 x 18 , HARIG, No. 618, 6x18 Table,19 Long Travel,6 3/4 Cross Feed Travel,12 vertical Height,7 x1/2 x1 1/4 Wheel,w/ Fine pole Walker mag chuck

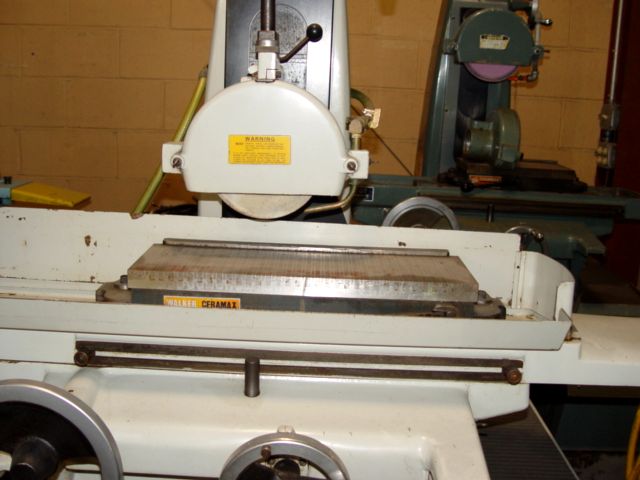

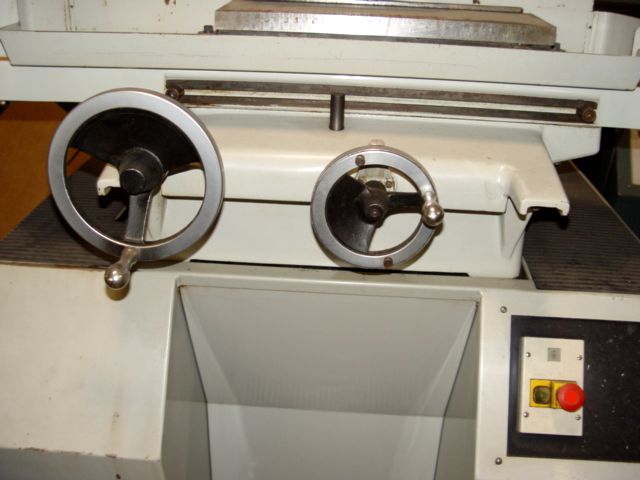

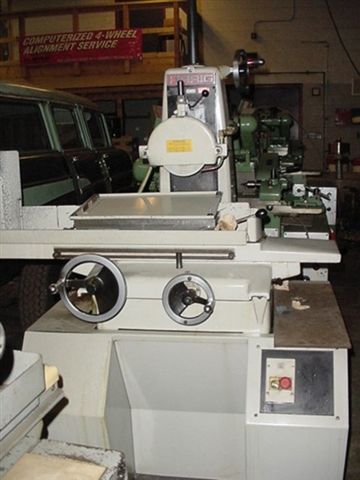

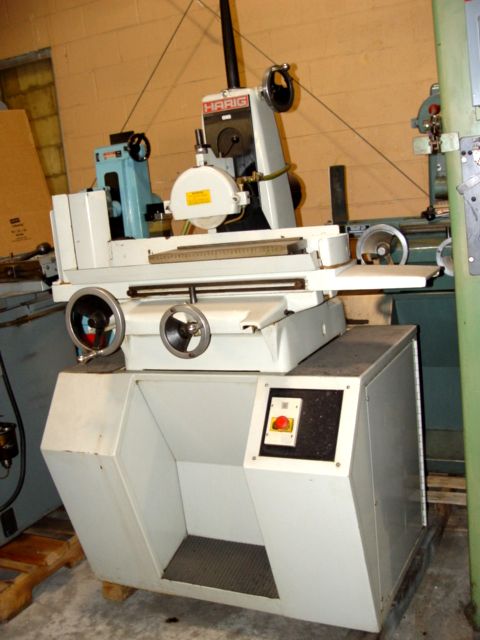

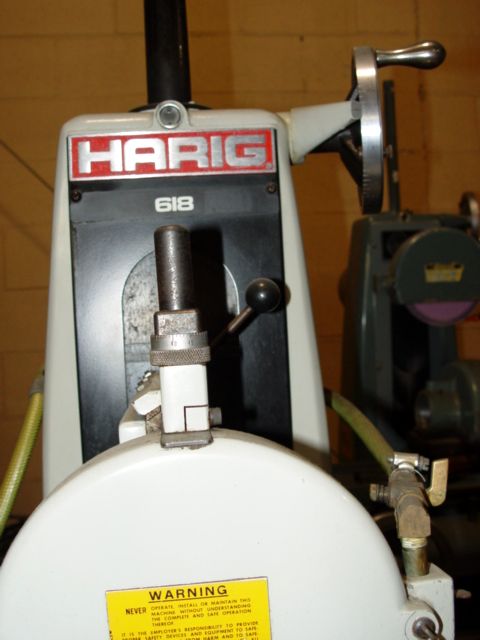

HARIG #618 SURFACE GRINDER (#101807)

MAKE:Harig
MODEL:618
AGE:1983
TABLE:6” X 18”

LONGITUDNAL TRAVEL 19"
CROSS FEED TRAVEL 6-3/4"
VERTICAL WORKING HEIGHT 12"
PLATEN WORKING AREA 6" X 18"
GRINDING WHEEL SIZE 7" X 1/2" X 1-1/4"
GRINDING WHEEL MAX. CAPACITY 8" X 1-1/4"
ELEVATOR HANDWHEEL GRADUATION .0005
CROSS FEED HANDWHEEL GRADUATION .001
MOTOR H.P. 1
SPINDLE SPEED 3450 RPM

FLOOR AREA OPERATING SPACE 40" X 31"
WEIGHT OF MACHINE 1170 LBS.

MACHINE EQUIPPED WITH:
6" X 18" FINE POLE WALKER PERM. MAGNETIC CHUCK
OVER THE WHEEL DRESSER

This grinder is located in MA and is being sold: “as is, loaded on buyer’s truck”
