16" x 40" cc, Jet, Accu-Rite DRO 300 & Collet Closer,SOCS 10",25 7/8"Swing through gap,3 1/8"Bore,Inch,metric,2010   Our stock number: 101808

16 x 40 cc, Jet, Accu-Rite DRO 300 & Collet Closer,SOCS 10 ,25 7/8 Swing through gap,3 1/8 Bore,Inch,metric,2010

Click on picture below for larger version
16 x 40 cc, Jet, Accu-Rite DRO 300 & Collet Closer,SOCS 10 ,25 7/8 Swing through gap,3 1/8 Bore,Inch,metric,201016 x 40 cc, Jet, Accu-Rite DRO 300 & Collet Closer,SOCS 10 ,25 7/8 Swing through gap,3 1/8 Bore,Inch,metric,201016 x 40 cc, Jet, Accu-Rite DRO 300 & Collet Closer,SOCS 10 ,25 7/8 Swing through gap,3 1/8 Bore,Inch,metric,2010
16 x 40 cc, Jet, Accu-Rite DRO 300 & Collet Closer,SOCS 10 ,25 7/8 Swing through gap,3 1/8 Bore,Inch,metric,201016 x 40 cc, Jet, Accu-Rite DRO 300 & Collet Closer,SOCS 10 ,25 7/8 Swing through gap,3 1/8 Bore,Inch,metric,2010

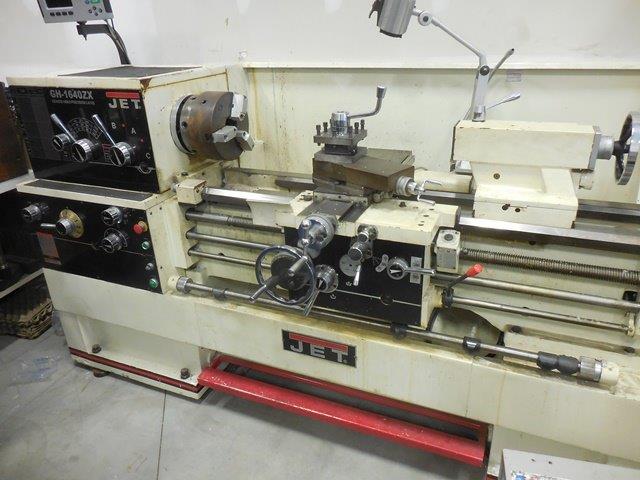

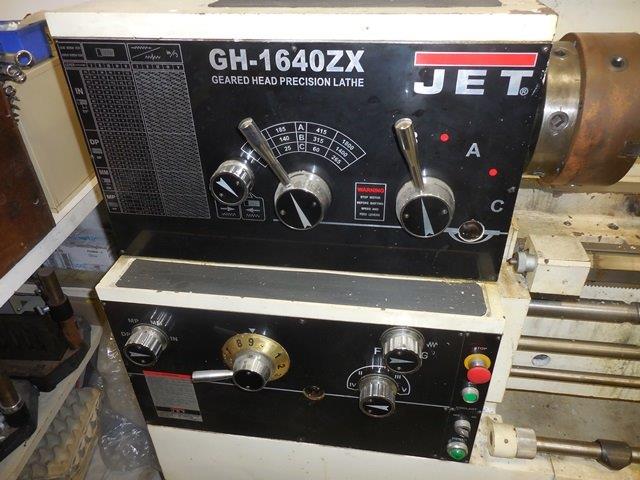

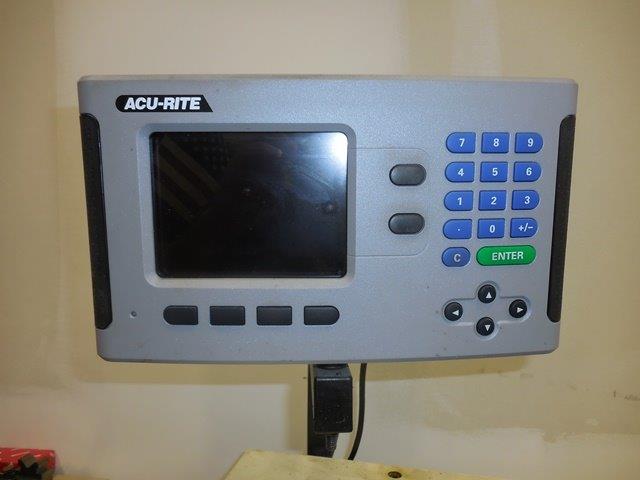

2010 Jet Lathe GH-1640ZX w/ 300S DRO & Collet Closer #101808

Swing over Bed:16”
Swing over Cross Slide:10”
Swing Through Gap:25-7/8”
Length of Gap:12-1/4”
Distance Between Centers:60”
Spindle Bore:3-1/8”
Spindle Mount:D1-8
Spindle Taper W/ Sleeve:MT-7(MT-5)
Number of Spindle speeds: 12
Range of Spindle Speeds (RPM): 25-1,800
Number of Longitudinal and Cross Feed Rates:12
Range of Longitudinal Feeds (IPR):.0015 - .0913
Range of Cross Feeds (IPR):.0006 - .0365
Number of Inch Threads:61
Range of Inch Threads (TPI):1-5/8 - 72
Number of Metric Threads:24
Range of Metric Threads:.05 - 20
Max Tool Size:1” x 1”
Compound Slide Travel:5-1/8”
Cross Slide Travel:9”
Carriage Travel:35”
Tailstock Spindle Travel:5”
Taper in Tailstock Spindle:MT-4
Steady Rest Capacity:3/8” – 7”
Follow Rest Capacity:½” - 3-1/2”
Width of Bed:13-3/8”
Motor: 7.5 HP, 230/460V/3 Ph
Dimensions:40”W x 97.5”L x 48”H
Net Weight:5,850 lbs

This machine is in MA and is being sold: “as is, where is”.
