15" x 60" cc, NARDINI, ND-1560E,2 1/4"Bore,25-2000RPM,D1-6 nose, 8HP,steady and follow rest,live & dead centers,5C Collet adapter,'1990s   Our stock number: 101809

15 x 60 cc, NARDINI, ND-1560E,2 1/4 Bore,25-2000RPM,D1-6 nose, 8HP,steady and follow rest,live & dead centers,5C Collet adapter,'1990s

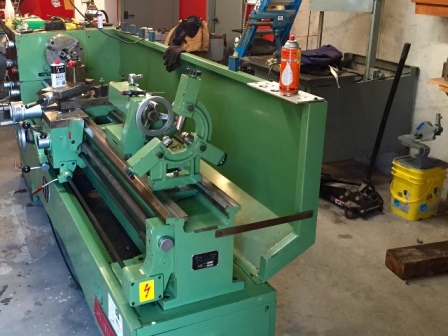

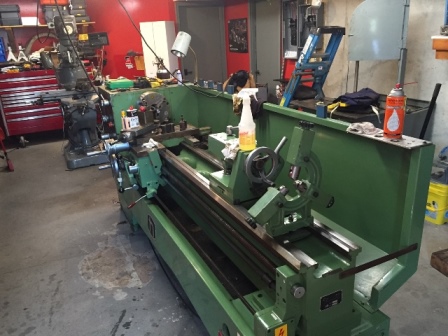

Click on picture below for larger version
15 x 60 cc, NARDINI, ND-1560E,2 1/4 Bore,25-2000RPM,D1-6 nose, 8HP,steady and follow rest,live & dead centers,5C Collet adapter,'1990s


Buyers and Sellers of New and Used Machine Tools- Appraisals-Custom Machine Design

NARDINI ND-1560E ENGINE LATHE (early 1990s) #101809

Height of Centers 7.5/8”
Distance between Centers 60”
Swing over Bed 15 3/8”
Swing over Wings of Saddle 8 5/8”
Cross Slide Travel 9 7/8”
Top Slide Travel 11.3/8”
Tool Section 3/4” x 3/4”
Bed Width x Height 10 5/8” x 12 5/8”
Spindle Nose D1-6
Spindle Bore 2 1/4”
Spindle Taper 4 MT
Spindle Speeds (18) 25-2000 RPM
Tailstock Quill Diameter 2.3/8”
Quill Travel 7.7/8"
Quill Taper 4 MT
Metric Threads (54) 0.40 - 18.472
Inch Threads (54) 42-2.3/4
Module Threads (54) 0.2 - 3.5
Diametral Pitch Threads (54) 84-3
Pitch of Leadscrew 4 TPI
Cross Feeds 0008-0.0406” / rev
Longitudinal Feeds 0.0021-0.0976”/ rev
Motor 8 HP
Dimensions 118” x 40” x 58” High
Weight 3,300 lbs.

Equipped with:3 Jaw and 4 Jaw chucks, Faceplate, 5C Collet Adapter,
Steady and Follow Rests, Boring Bar, Dorian Quick Change
Tooling and Tool Post, Live & Dead Centers,Royal Tooling and more.

** The machine has a newly wound motor with only approximately 6 on hours.

This lathe is in North Central USA and is being sold: “as is, where is”.
