HAAS TL-1, 3", 8"X,30"Z,2000 RPM,royal collet closer, 12HP,A2-6,SOCS 11", Max cut diameter 16",2005   Our stock number: 101814

HAAS TL-1, 3 , 8 X,30 Z,2000 RPM,royal collet closer, 12HP,A2-6,SOCS 11 , Max cut diameter 16 ,2005

Click on picture below for larger version
HAAS TL-1, 3 , 8 X,30 Z,2000 RPM,royal collet closer, 12HP,A2-6,SOCS 11 , Max cut diameter 16 ,2005

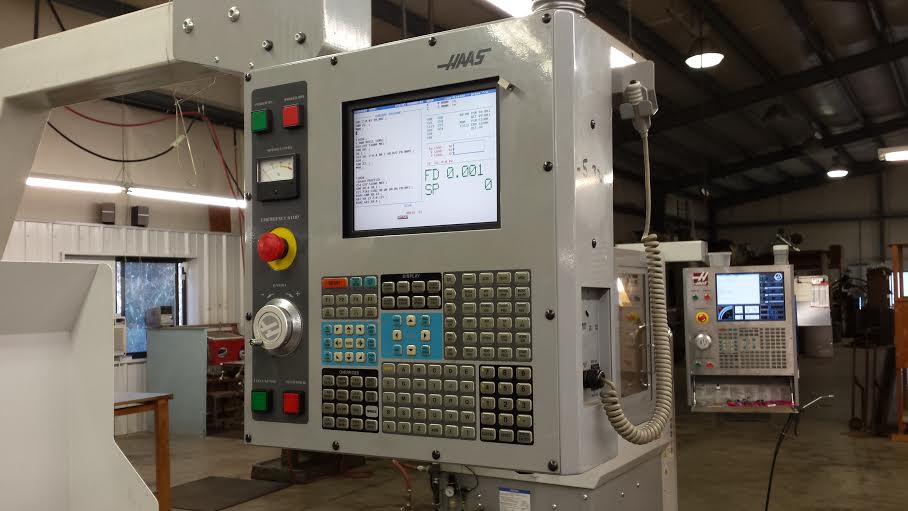

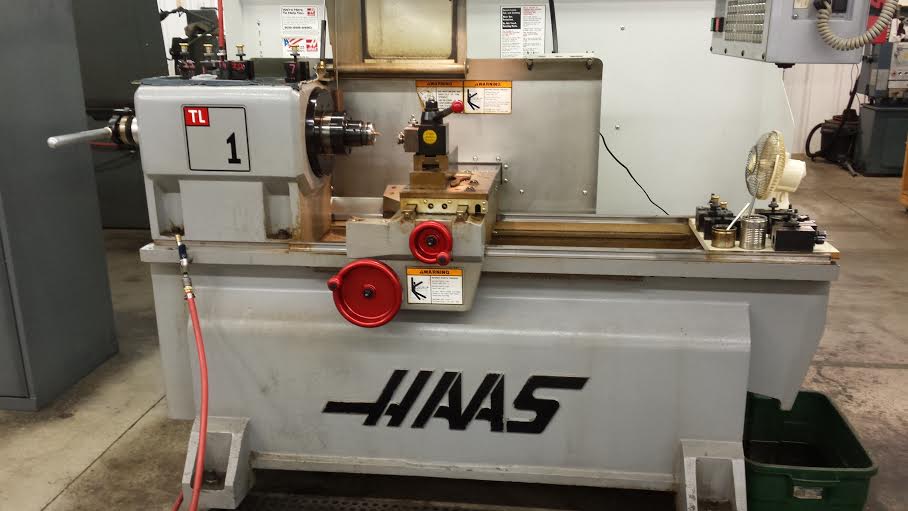

2005 HAAS TL-1 TOOL ROOM LATHE

Swing Over Front Apron 20"
Swing Over Cross Slide 11"
Max Cutting Diameter (varies with turret) 16"
Max Cutting Length (without work holding) 30"
Between Centers 30"
X Axis 8"
Z Axis 30"
Rapids X & Z 450"/min
Max Thrust X 3894 lb
Max Thrust Z 1947 lb
Motor 12HP
Max Speed 2000 rpm
Max Torque 108 ft-­‐lb @ 355 rpm
Spindle Nose A2-­‐6
Spindle Bore ø 3.00"
