1 1/4", HANWHA, No. XD-32 H, Fanuc, Max Machining length 12.6",200-8000RPM,Back spindle 200- 7000RPM, MTA Eagle 551-6 Bar Loader,2008   Our stock number: 101815

1 1/4 , HANWHA, No. XD-32 H, Fanuc, Max Machining length 12.6 ,200-8000RPM,Back spindle 200- 7000RPM, MTA Eagle 551-6 Bar Loader,2008

Click on picture below for larger version
1 1/4 , HANWHA, No. XD-32 H, Fanuc, Max Machining length 12.6 ,200-8000RPM,Back spindle 200- 7000RPM, MTA Eagle 551-6 Bar Loader,20081 1/4 , HANWHA, No. XD-32 H, Fanuc, Max Machining length 12.6 ,200-8000RPM,Back spindle 200- 7000RPM, MTA Eagle 551-6 Bar Loader,20081 1/4 , HANWHA, No. XD-32 H, Fanuc, Max Machining length 12.6 ,200-8000RPM,Back spindle 200- 7000RPM, MTA Eagle 551-6 Bar Loader,2008

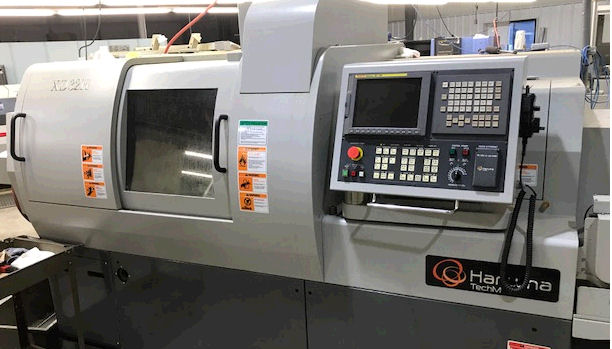

2008 HANWHA XD32- H CNC SWISS TYPE SCREW MACHINE #101815

Max.turning diameter1 1/4"
Max. turning length 12.6"
Main Spindle 8,000
Sub pindle 7,000rpm
Cross Tool Motor 8,000 rpm
Back Tool Motor 6,000 rpm

O.D. tools5EA
Front work tools5EA
Back work tools (Driven)5EA(2Driven, 3Fixed)

LubricantCapacity1.8L
CoolantCapacity230L
Power Consumption (Cable Size) 25kVA(Min. 6 SQ)
Air Flow Rate120 Liter/Min
Machine Weight3,600 Kg
Size(LxWxH)3,020 x 1,390 x 1,745
